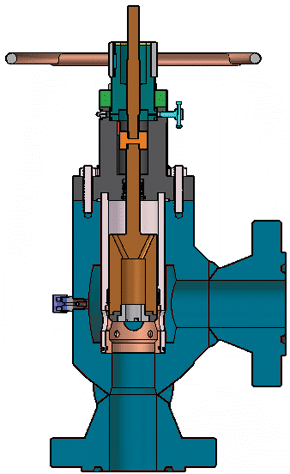

Plug and Cage
Plug and Cage
3” to 8” body sizes
2000, 3000, 5000, 10,000 API and ANSI classes up to 2500
Micrometer style indicator
Non rotating lower stem enhanced stem packing life
Stem packing and balance seal set, using spring energized lip seals
Bolted Bonnet w/ Metal to Metal Bonnet Seal
Static pressure balance seal acting on upper plug
Tungsten Carbide wear components on plug and cage
Pressure balanced trim reduces actuator loading, torque
Hardened, blowout proof stem
Control Choke Valve, Plug and Cage Choke, External Sleeve Choke, Multistage Choke, Oil and Gas Choke Valve, Severe Service Choke, Severe Service Control Valve, Gas Lift Choke, Anticavitation Valve, Dump Valve, Water Injection Choke, UK, United Kingdom
Plug and Cage Trim
Plug and Cage Trim
Large body annulus maximizes Cv and eliminates body erosion Plug and Cage control choke trims provide maximum flow capacity and are used in Production and Injection service.

Flow is directed through the ports in the trim to impinge on itself in the centre of the flow cage. The internally guided plug controls the opening and rate of flow. The cage is supported at both ends to provide a rigid and robust trim suited to Production and Injection applications.

The plug shuts off flow by making contact on an internal prepared surface at the bottom of the flow cage.
