Control Chokes
Trim
General Features
Model ES20/25
Model PC25
Plug and Cage 3" to 10"
External Sleeve 3" to 6"
Materials
Dimensions
Automation
Dimensions
Dimensions
Body Size
A

C

B
mm
mm
mm
2
300
250
250
2.5
400
250
250
3
450
250
460
4
475
250
460
5
650
375
460
6
630
375
460

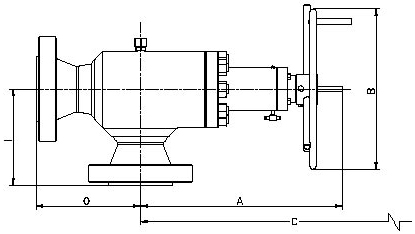

Dimensions provided as a guide only. Other dimensions and end connections available on request. Consult In-Line Valve Co Ltd for actual dimensions.
2" model 20ES
I & O Connections
mm

in

Weight
O
I
O
I
kg
lb
2" 600# RF
181
176
7.1
6.9
48
106
2" 900# RF
210
205
8.3
8.1
60
132
2" 900# RTJ
211
206
8.3
8.1
60
132
2" 1500# RTJ
211
206
8.3
8.1
60
132
2" 2500# RTJ
237
231
9.3
9.1
75
166
2 1/16" 5K#
211
206
8.3
8.1
60
132
2 1/16" 10K#
213
208
8.4
8.2
57
126
2 9/16" 5K#
214
209
8.4
8.2
70
154
2 9/16" 10K#
229
224
9.0
8.8
69
152
3" 600# RF
191
185
7.5
7.3
58
128
3" 900# RF
210
205
8.3
8.1
66
146
3" 900# RTJ
211
206
8.3
8.1
66
146
3" 1500# RTJ
227
222
8.9
8.7
81
178
3" 2500# RTJ
279
274
11.0
10.8
123
270
3 1/8" 3K#
211
206
8.3
8.1
66
146
3 1/8" 5K#
227
222
8.9
8.7
81
178
3 1/16" 10K#
241
236
9.5
9.3
86
190
2.5" model 25PC
I & O Connections
mm

in

Weight
O
I
O
I
kg
lb
2" 1500# RTJ
210
204
8.3
8.1
74
163
2" 2500# RTJ
235
230
9.3
9.1
89
197
2 1/16" 5K#
210
204
8.3
8.1
74
163
2 1/16" 10K#
211
206
8.3
8.1
71
157
2 9/16" 5K#
213
208
8.4
8.2
84
185
3" 600# RF
189
184
7.4
7.2
72
159
3" 900# RF
208
203
8.2
8.0
80
177
3" 1500# RTJ
225
220
8.9
8.7
95
209
3" 2500# RTJ
278
273
10.9
10.7
137
301
3 1/8" 3K#
210
204
8.3
8.1
80
177
3 1/8" 5K#
225
220
8.9
8.7
95
209
3 1/16" 10K#
240
235
9.4
9.2
100
221
4" 600# RF
208
203
8.2
8.0
89
197
4" 900# RF
221
216
8.7
8.5
98
215
4" 900# RTJ
222
217
808
806
98
215
4" 1500# RTJ
232
227
9.1
8.9
117
259
4 1/16" 5K#
232
227
9.1
8.9
117
259
3" model 30PC, 30ES
I & O Connections
mm

in

Weight

O
I
O
I
kg
lb
2" 2500# RTJ
306
278
12.1
11.0
165
364
2 1/16" 5K#
281
253
11.1
10.0
150
330
2 9/16" 3K#
284
256
11.2
10.1
160
352
2 9/16" 5K#
284
256
11.2
10.1
160
352
3" 600# RF
260
232
10.3
9.2
148
326
3" 900# RF
279
252
11.0
9.9
156
344
3" 1500# RTJ
297
269
11.7
10.6
171
376
3" 2500# RTJ
349
321
13.8
12.7
212
468
3 1/8" 3K#
281
253
11.1
10.0
156
344
3 1/8" 5K#
297
269
11.7
10.6
171
376
3 1/16" 10K#
311
283
12.3
11.2
176
388
4" 600# RF
279
252
11.0
9.9
165
364
4" 900# RF
292
264
11.5
10.4
173
382
4" 1500# RTJ
303
275
11.9
10.8
193
426
4" 2500# RTJ
373
345
14.7
13.6
259
572
4 1/16" 3K#
294
266
11.6
10.5
173
382
4 1/16" 5K#
303
275
11.9
10.8
193
426
4" model 40PC, 40ES
I & O Connections
mm

in

Weight
O
I
O
I
kg
lb
3" 1500# RTJ
297
269
11.7
10.6
196
433
3" 2500# RTJ
349
321
13.7
12.7
238
525
3 1/8" 3K#
281
253
11.1
10.0
182
401
3 1/8" 5K#
297
269
11.7
10.6
196
433
3 1/16" 10K#
311
283
12.2
11.2
202
445
4" 600# RF
279
252
11.0
9.9
191
421
4" 900# RF
292
264
11.5
10.4
199
439
4" 1500# RTJ
303
275
11.9
10.8
219
483
4" 2500# RTJ
373
345
14.7
13.6
285
629
4 1/16" 3K#
294
266
11.6
10.5
199
439
4 1/16" 5K#
303
275
11.9
10.8
219
483
4 1/16" 10K#
340
312
13.4
12.3
235
519
6" 600# RF
295
267
11.6
10.5
226
499
6" 900# RF
317
290
12.5
11.4
253
557
6" 1500# RTJ
352
325
13.9
12.8
302
665
7 1/16" 3K#
319
291
12.6
11.5
253
557
7 1/16" 5K#
352
325
13.9
12.8
302
665
