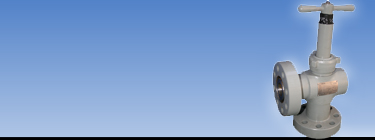

Model PC 25
Model PC 25
2000, 3000, 5000, 10,000 API and ANSI classes up to 4500
Metal to Metal shut off in accordance with ANSI class IV
Bolted bonnet with metal to metal seal for enhanced safety and reliability
Dynamic seal (stem packing) uses spring energized lip seals
Micrometer indicator barrel calibrated in /64” ‘Bean Size’
Body/Bonnet Materials include, Carbon Steel, Alloy Steel, Stainless Steel and Duplex Stainless Steel
Standard Trim, 96/64” with MEP flow profile

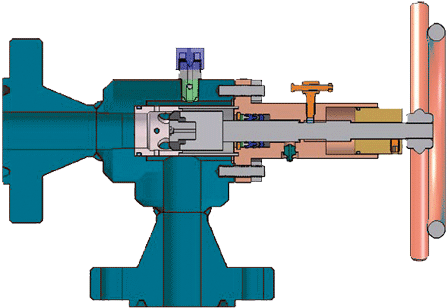

Standard trim uses Plug and Cage design with enlarged body gallery to provide maximum resistance to erosion and flow capacity
Standard end connections include flanges 2 1/16”, 2 9/16” 3 1/8”, 4 1/16” API and 2”, 3”, 4” ANSI
Cartridge style trim installation uses no internal threads or special tools - easing field maintenance
Optional In-Line Body
