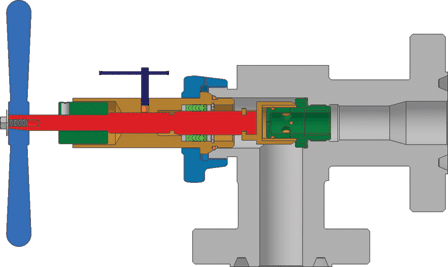

Model ES 20/25
Model ES 20/25
2000, 3000, 5000, 10,000 API and ANSI classes up to 4500
Metal to Metal shut off in accordance with ANSI class V
Field conversion kits to adjustable needle and seat, and positive chokes
Bonnet nut fitted with bleed hole for safety during servicing
Dynamic seal (stem packing) uses spring energized lip seals
Micrometer indicator barrel calibrated in /64” ‘Bean Size’
Body/Bonnet Materials include, Carbon Steel, Alloy Steel, Stainless Steel and Duplex Stainless Steel
Hammer union type bonnet nut for ease of field service
Standard Trims, 64/64” and 96/64" with MEP flow profile
Standard trim uses External Sleeve design with enlarged body gallery to provide maximum resistance to erosion
Standard end connections include flanges 2 1/16”, 2 9/16” 3 1/8” API and 2”, 3” ANSI
Optional In-Line Body
