2000,
3000, 5000, 10000 API and ANSI classes up
to 4500 |
-- |
Field
conversion kits to positive, and cage trim
control chokes |
-- |

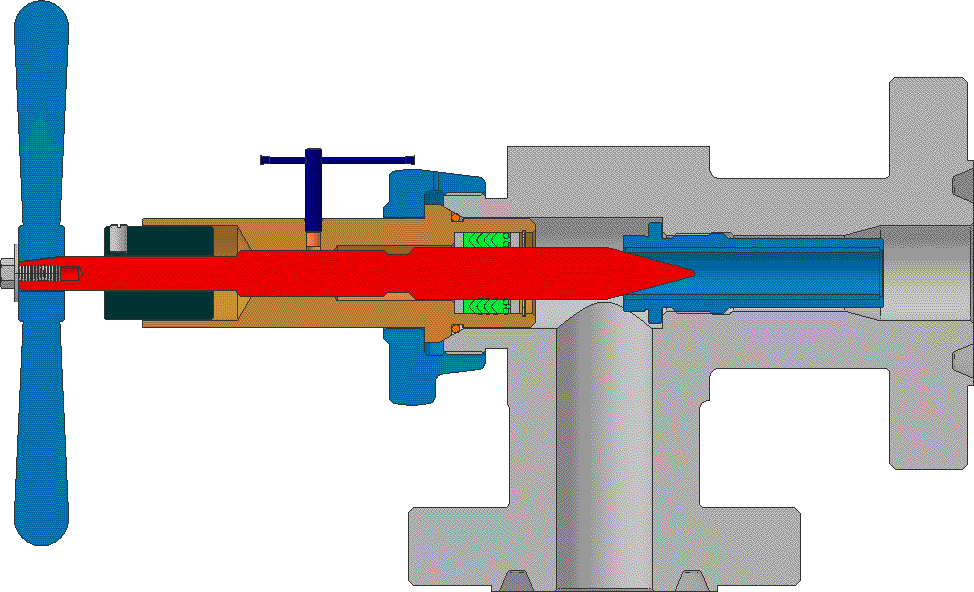

Field
conversion kits to adjustable needle and
seat, and cage type adjustable chokes |
-- |
Bonnet
nut with vent hole for safety during servicing |
-- |
Dynamic
seal (stem packing) uses spring energized
lip seals |
-- |
Micrometer
indicator barrel calibrated in /64"
'Bean Size' |
-- |
Body/Bonnet
materials include, Carbon Steel, Alloy Steel,
Stainless Steel and Duplex Stainless Steel |
-- |
In-Line
or Angle body options |
Control
Choke Valve, Plug and Cage Choke, External
Sleeve Choke, Multistage Choke, Oil and
Gas Choke Valve, Severe Service Choke,
Severe Service Control Valve, Gas Lift
Choke, Anticavitation Valve, Dump Valve,
Water Injection Choke, UK, United Kingdom
|
|
|
| Control
Choke Valve, Plug and Cage Choke, External Sleeve
Choke, Multistage Choke, Oil and Gas Choke Valve,
Severe Service Choke, Severe Service Control Valve,
Gas Lift Choke, Anticavitation Valve, Dump Valve,
Water Injection Choke, UK, United Kingdom |
Nominal
Body Size |
End
Connections |
Trim
size |
|
2" |
API 2 1/16",
2 9/16", 3 1/8"
ANSI Flanges 2", 3"
|
1" (64/64")
1.5" (96/64") |
 |
3" |
API Flanges 3
1/8", 4 1/16"
ANSI Flanges 3", 4"
|
2" (128/64")
50mm |
|
|
|
|
|
